UF Membranes

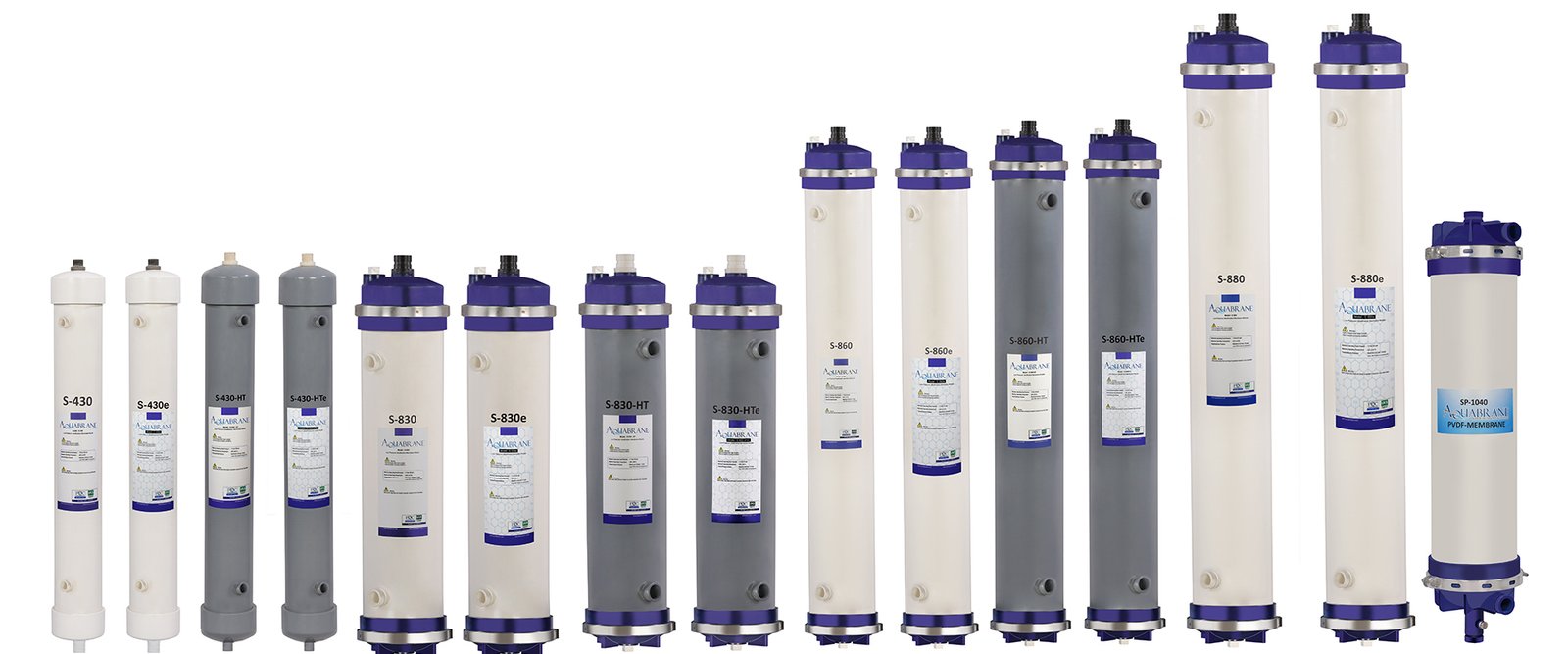

Hollow Fiber Ultrafiltration Membrane Modules

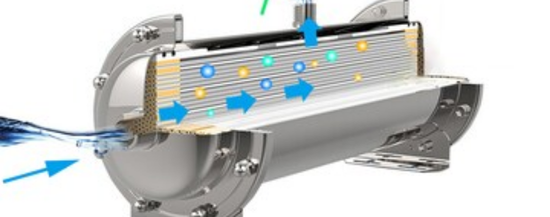

Hollow Fiber Ultrafiltration Membrane Modules are advanced filtration solutions designed to effectively remove suspended solids, bacteria, viruses, and colloidal impurities from water. These modules are constructed using thousands of fine hollow fibers with precisely controlled pore sizes, offering a large filtration surface area within a compact design.
Water passes through the membrane walls under low pressure, ensuring high-quality permeate with consistent performance. Known for their durability, low fouling tendency, and energy-efficient operation, hollow fiber UF membrane modules are ideal for drinking water treatment, wastewater reuse, industrial process water, and RO pretreatment applications.
Key Features & Benefits
- High-Precision Filtration: Effectively removes suspended solids, bacteria, viruses, and colloids for consistently high permeate quality.
- Graphene Oxide Coating: Enhances membrane recovery, reduces fouling, and significantly increases membrane life and performance stability.
- Low Energy Operation: Operates at low pressure, reducing energy consumption and operating costs.
- High-Temperature Resistant Membranes: Specially engineered fibres capable of withstanding operating temperatures up to 75–80°C, suitable for demanding applications.
- Hydrophilic PES Membrane: Ensures better wettability, easy cleaning, and long-term performance.
- Flexible Operation: Suitable for both dead-end and cross-flow filtration systems.
- Durable & Easy Maintenance: High mechanical strength with reduced chemical cleaning requirements, supporting long-term, eco-friendly water treatment.
Why Choose Aquabrane UF Modules?
- Superior Quality Assurance: Each module undergoes rigorous testing and carries a unique serial number for traceability.
- Optimized for Performance: Engineered with enhanced fiber geometry and membrane chemistry to maximize filtration efficiency.
- Option of: high-temperature and graphene oxide coating with oil & grease-resistant versions also available on request.
Advantages of Outside-In Flow as compared to Inside-Out flow configuration

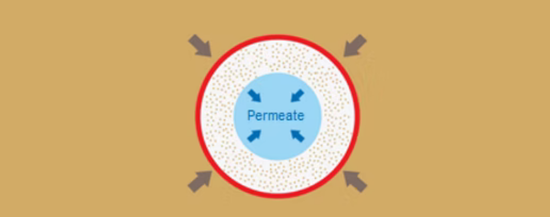

Outside-In Flow
- Solids remain on the outer surface of the membrane fibers
- Easier and less frequent cleaning
- Allows higher solids loading and uniform flow distribution
- More tolerant to particulate fouling
- Effective foulant removal during backwash with air scouring and CIP
- Reduces risk of irreversible fiber choking during feed water fluctuations

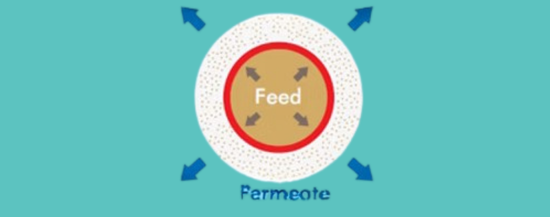

Inside-Out Flow
- Requires fine prescreening to prevent solids from entering the fiber lumen
- Cleaning is more aggressive and more frequent
- Higher solids loading may cause fiber blockage
- Less tolerant to particulate fouling
- Aggressive CEBs and CIPs may be required for foulant removal
- Higher likelihood of fouling over long-term operation
Applications
Our Hollow Fiber Ultrafiltration Modules are ideal for:
- Drinking Water Treatment & Purification
- Surface & Well Water Filtration
- RO/NF & SWRO Pretreatment
- Tertiary Treatment in Sewage Recycle Plants
- Industrial Process Water Treatment
- Municipal & Industrial Wastewater Recycling
